DOORSIGNDigital terminal

Digital LCD terminal for displaying and recording workflow information in the clinical environment.

DOORSIGN

In the OR, planning and transparency make a major contribution to smooth processes in the often stressful daily routine.
The occupancy of operating theaters plays a central role in this – as does providing nursing staff with information on what is currently happening in the OR.
We solve this challenge with our DOORSIGN digital terminal and simple integration into the IP infrastructure.

Typical areas of use

  • Operating theatre room doors
  • access doors
  • emergency rooms
  • intensive care units

Slim hygienic design

Long-term availability

Aluminum casing

Hygienic

Aims and use cases

Information for the OR staff– Status of the current operation (e.g. suture, incision)– Infection status of the patient (e.g. hepatitis, AIDS)– Warnings (e.g. use of X-ray, laser)– Room status (e.g. cleaning, free)

The hidden becomes visible

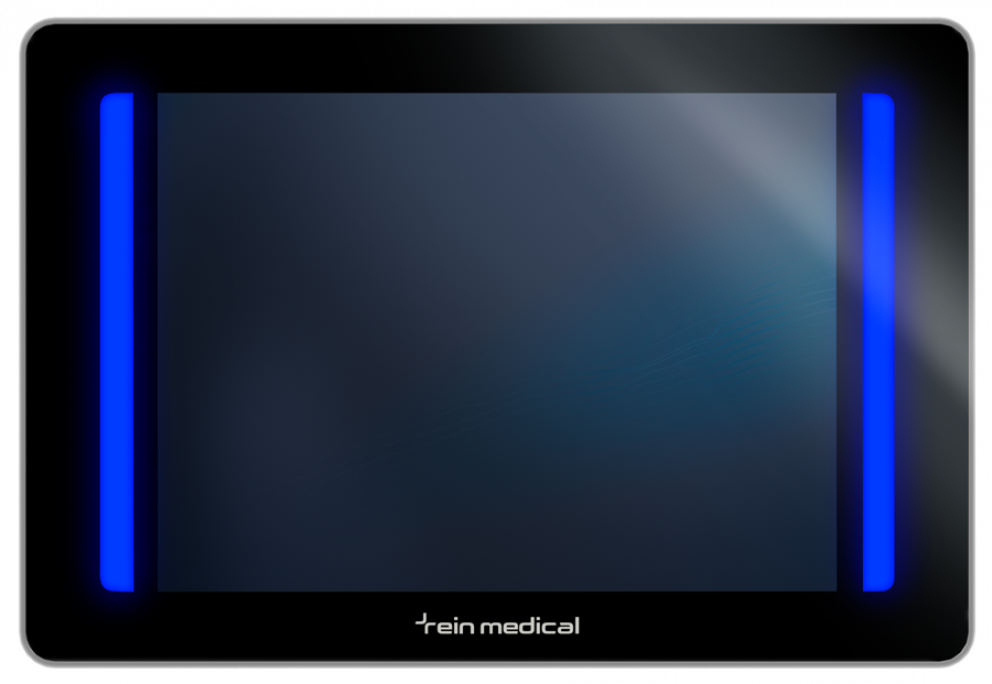

The 10-inch LCD terminal with touch function and coloured illumination clearly displays all important workflow information. In addition, it offers optional reading and release devices such as RFID, SmartCard and barcode readers. The terminal meets the highest hygienic standards, which means that hospitals can use it primarily in the operating theatres, intensive care units and emergency rooms.

Optimised workflow

When a patient is brought into the induction room, all necessary and previously defined data is transferred directly from the HIS to the client. Here the procedure is created and transmitted back to the KIS via HL7 message.

When the patient leaves the operating room after the procedure, DOORSIGN changes the background colour and shows what happens next.

The digital room signage system then informs the staff about the patient, the procedure and the room status.

Everyone with the necessary access rights has an overview of the room occupancy in the hospital.

Connection possibilities

If SMART OR MANAGER is installed as a central communication node within a video management integration, it can be used to connect the DOORSIGNs. The data connection can be used to the KIS, RIS and other subsystems via DICOM or HL7 and enables uncomplicated data exchange. If SMART OR MANAGER is not pre-installed, the connection can also be made via DICOM or HL7 in the form of an MS Windows system service.

HARDWARE

– All-round RGB LED light strip, for displaying status information – 10.1″ (5.65 cm) PCAP touch display, 1280 x 800 pixels – Anti-theft protection – Power supply via POE – Identification (RFID, smart cards) – Washable and disinfectable display – IP65-protected front – No ventilation slots – Anodized aluminium surface or germicidal powder coating – Protective glass – High scratch resistance (Gorilla glass) – Anti-reflective coating

SOFTWARE

– Connection to hospital information systems/server systems/software e.g. SMART OR) HL7 and DICOM support – Workflow management in OR areas – Modern browser SPA

The Terminal is guaranteed:

– Data protection of patient data– Flexible and user-specific interface– Individual definition of background colors– Medical requirements thanks to the hygienic design– Transparency of the OR process

Downloads

You can find more information about this product in our product brochure.
